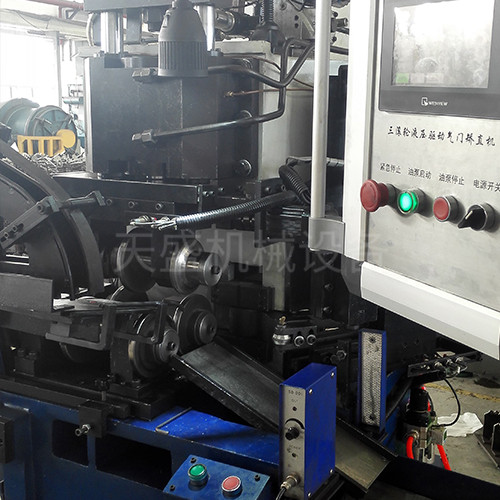

Valve head straightening machine

  • Taxonomy:Valve roughing equipment

  • Number of clicks:
  • Release date:2018/11/01
  • More
  • Message
  • Content
  • Parameter
  • Video






Header straighter


1. Processing range (original state of the workpiece):

Workpiece status

Processing conditions

Remarks

Disk diameter

MAX 50㎜-80mm


Rod diameter

φ7~14


length

100~250


Material

21-4N+4Cr10Si2Mo


hardness

3060HRc


Rod beat

1.0


Disk beat

0.8



2. Machining accuracy and beat:

Part

Accuracy

Detection method and tool

Rod beat

MAX 0.15mm continuous processing and measuring 50 pieces

Dedicated Gage

Disk beat

MAX 0.15mm continuous processing and measuring 50 pieces

Vernier caliper

Processing efficiency (beat)

With the machining allowance rod diameter 9 as the standard 8s/pcs


3. Main configuration:


Main structural features

Quantity

bed frame

It is welded by steel plate and then annealed to prevent deformation. The symmetrical structure design greatly improves the rigidity, vibration resistance and thermal deformation resistance of the bed.

1 set

Spindle

Main motor

Gear motor 5.5KW (380V/50Hz)

1 set

Drive triangle

Chain drive

Spindle


Feed

Feed screw

Taiwan silver ball screw

Market standard parts configuration, smooth sliding resistance, high sensitivity, low noise; repeat positioning accuracy: 0.01mm

1 set

Feed rail

Taiwan silver roller linear guide

Feed drive

Huichuan servo + motor

lubricating

The main shaft adopts sealed self-lubrication, no need to fill grease in 3 years; the feed is automatic lubrication oil pump, fixed point, timing, quantitative automatic lubrication, automatic oil injection pump is out of oil, automatic operation stops, alarm flashes prompt, forced refueling.

1 set

Control System

Control System

Huichuan

1. The electrical part should have certain moisture and dustproof measures to adapt to the environment of 70% humidity work site in summer.


2. There are total accumulated numbers on the operation panel, the cumulative number of shifts, the clearing, and the production timing function.


3. The machine has a computer RS232 interface, with alarm signals, counting alarms and fault alarms.


4. The device is clearly positioned as a three-color signal light.


1 set

server system

Igawa River Servo

touch screen

Huichuan

Air pressure configuration

Taiwan Yadeke

sensor

Autonics

Safety

Infrared detection

Feed

Pneumatic automatic feeding, product spacing does not collide

1 set

Discharge

Crawler type automatic discharge, product interval does not collide

1 set

use

 Three-phase five-wire system 380V/50Hz, air pressure: 0.4~0.6MPa


Total power

8kw(380V/50Hz)

Machine dimensions

1000×1000×1800

Machine weight

2500
